| Spindle Motor Power | 5.5Hp x 2 Units |
|---|---|
| Hydraulic Pump Motor | 2Hp |
| Oscrllating Motor | 2Hp |
| Table Elevation Motor | ½Hp |
| Table Area | 350mm x 2130mm |
| No. Of Spindles | 16 pcs |
| Stroke Travel | 100mm |
| Oscillation Stroke | 0 – 100mm |
| Minimum Centre Distance Between Spindle | 62mm |
| No. Of Clamping Cylinders | 6 pcs |
| Machine Dimension | 2800mm x 1150mm x 1350mm |
| Nett Weight | 2400 Kg |

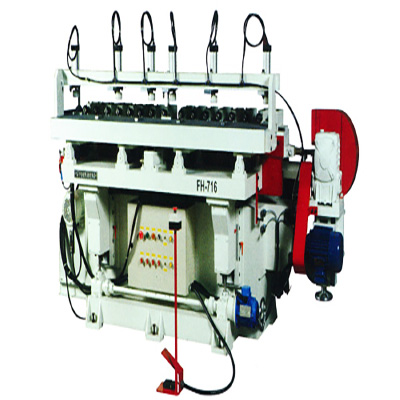

FORMAHERO FH-716 MULTI BORING SLOT MORTISING MACHINE
FEATURES:
- Slotting length is easily adjustable
- Table elevation is driven by motor for convenience
- Upper and lower stroke limits are controlled by limit switch for optimal safety
- Boring or slotting can be individually controlled
