FREUD LSB X SAW BLADES

FREUD LSB X SAW BLADES

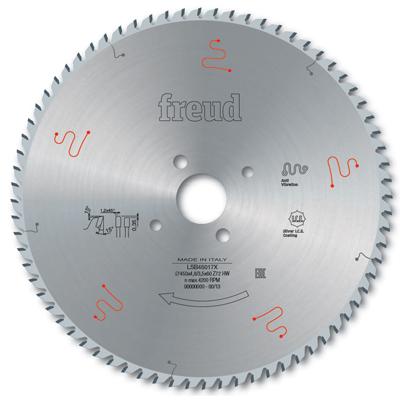

FREUD LSB X SAW BLADE

FREUD LSB X saw blade range represents the ideal choice for industrial panel sizing. Saw Blade suitable for chipboard and MDF bi-laminated panels. Good finishing also in HPL and acrylic panel cutting.

Machines :

Horizontal Panel Sizing Machines
Materials :

Laminated Chipboard, Laminated MDF, HPL, Thermoplastic Composites, Plexiglas
Applications :

Industrial Panel Sizing.



SKU: LSB X Categories: , ,

FREUD LSB X SAW BLADES

The Freud LSB X Industrial Panel Sizing Saw Blade is a high-performance saw blade designed for use in industrial panel sizing applications. With its unique design and advanced featured, this saw blade is capable of cutting through even the toughest materials with ease, delivering precise cuts and a clean finish every time.

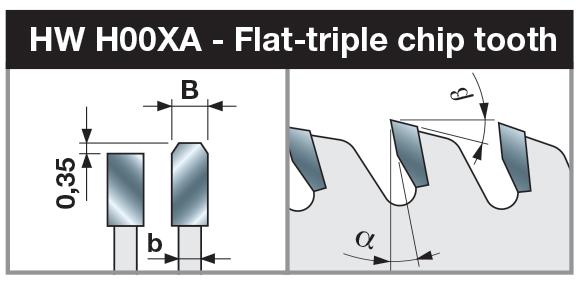

One of the key features of the FREUD LSB X Saw Blade is its advanced tooth geometry. The teeth on this saw blade are specially designed to provide smooth, clean cuts in a wide variety of materials, including hardwoods, softwoods, laminates and more. This tooth geometry aslo helps to reduce cutting forces, which in turn reduces saw blade stress and extends the life of the blade.

In addition to its advanced tooth geometry, the FREUD LSB X Saw Blade also features a unique laser-cut anti-vibration design. This design helps to reduce noise and vibration during cutting, providing a more comfortable and efficient cutting experience for operators. The blade also features laser-cut expansion slots, which help tp reduce noise and heat buildup during use.

The Freud LSB X Saw Blade is made from high-quality materials, including premium carbide and steel. This ensures that the blade is durable and long-lasting, even in the most demanding cutting applications.

Overall, the FREUD LSB X Industrial Panel Sizing Saw Blade is an excellent choice for anyone looking for a high-performance saw blade for industrial panel sizing applications.

Benefits & Features

Silver I.C.E Coating

A high performing and anticorrosive coating to maintain the blade temperature low during the working process. The non-stick feature improves chip ejection and notably reduces resin build-up, significantly reducing friction and extending the lifetime of the blade.
TiCo Carbide Technology

A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud. It provides a sharper edge and a flawless finish with a dramatically longer cutting life


Anti-Vibration Technology

Body slots laser cut with Freud’s innovative technology. Also available with thermoplastic polyurethane filling, that considerably reduces vibration and minimizes noise.



Graphs

Model & Specification

Model Anti-Vibration Silver I.C.E Coating TiCo Carbide Blade Dia (mm) Plate (mm) Kerf (mm) Bore (mm) Tooth
LSBX30001X • • • 300 4.4 3.0 30 60
LSBX30002X • • • 300 4.4 3.0 65 60
LSBX30004X • • • 300 4.4 3.0 80 60
LSBX30005X • • • 300 4.4 3.0 30 72
LSBX30006X • • • 300 4.4 3.0 65 72
LSBX30008X • • • 300 4.4 3.0 80 72
LSBX30012X • • • 300 4.4 3.2 60 72
LSBX31001X • • • 310 4.4 3.2 60 72
LSBX32005X • • • 320 4.4 3.2 30 60
LSBX32003X • • • 320 4.4 3.2 65 60
LSBX32001X • •  •  320 4.4 3.2 65 72
LSBX32002X • • • 320 4.4 3.2 75 72
LSBX35003X • • • 350 4.4 3.2 30 72
LSBX35006X • • • 350 4.4 3.2 50 72
LSBX35004X • • • 350 4.4 3.2 60 72
LSBX35013X • • • 350 4.4 3.2 65 72
LSBX35008X • • • 350 4.4 3.2 75 72
LSBX35005X • • • 350 4.4 3.2 80 72
LSBX35503X • • • 355 4.4 3.2 80 54
LSBX35504X • • • 355 4.4 3.2 30 72
LSBX35508X • • • 355 4.4 3.2 65 72
LSBX35505X • • • 355 4.4 3.2 75 72
LSBX35507X • • • 355 4.4 3.2 75 72
LSBX35506X •  • • 355 4.4 3.2 80 72
LSBX36003X • •  • 360 4.4 3.2 30 72
LSBX36002X •  • • 360 4.4 3.2 65 72
LSBX38009X • • • 380 4.4 3.2 80 48
LSBX38001X • • •  380 4.4 3.2 60 60
LSBX38008X • • • 380 4.4 3.2 50 72
LSBX38002X • • • 380 4.4 3.2 60 72
LSBX38014X • • • 380 4.4 3.2 65 75
LSBX38012X • • • 380 4.4 3.2 75 72
LSBX38010X • • • 380 4.4 3.2 80 72
LSBX38015X • • • 380 4.4 3.2 60 84
LSBX38013X • • • 380 4.4 3.2 80 96
LSBX38004X • • • 380 4.8 3.5 60 72
LSBX38005X • • • 380 4.8 3.5 60 84
LSBX39001X • • • 390 4.4 3.2 80 72
LSBX40001X • • • 400 4.4 3.2 30 48
LSBX40004X • • • 400 4.4 3.2 30 60
LSBX40005X • • • 400 4.4 3.2 75 60
LSBX40011X • • • 400 4.4 3.2 80 60
LSBX40007X • • • 400 4.4 3.2 30 72
LSBX40017X • • • 400 4.4 3.2 60 72
LSBX40016X • • • 400 4.4 3.2 65 72
LSBX40008X • • • 400 4.4 3.2 75 72
LSBX40009X • • • 400 4.4 3.2 80 72
LSBX40012X • • • 400 4.4 3.2 80 72
LSBX40021X • • • 400 4.4 3.2 60 84
LSBX40019X • • • 400 4.2 3.2 75 84
LSBX40013X • •  •  400 4.8 3.5 60 72
LSBX42006X • • • 420 4.4 3.2 50 72
LSBX42005X • • • 420 4.4 3.2 80 72
LSBX42002X • • • 420 4.8 3.5 60 84
LSBX43007X • • • 430 4.4 3.2 30 72
LSBX43012X • • • 430 4.4 3.2 65 72
LSBX43008X • • • 430 4.4 3.2 75 72
LSBX43009X • • • 430 4.4 3.2 80 72
LSBX43010X • • • 430 4.4 3.2 75 96
LSBX43013X • • • 430 4.8 3.5 70 72
LSBX45007X • • • 450 4.4 3.2 30 72
LSBX45008X • • • 450 4.4 3.2 60 72
LSBX45009X • • • 450 4.4 3.2 80 72
LSBX45017X •  • • 450 4.8 3.5 60 72
LSBX45018X • •  • 450 4.8 3.5 80 72
LSBX46001X •  • • 460 4.4 3.2 30 72
LSBX46002X • • • 460 4.4 3.2 75 72
LSBX47003X • • •  470 4.4 3.2 75 72
LSBX47004X • • • 470 4.4 3.2 75 96
LSBX47005X • • • 470 4.8 3.5 70 72
LSBX48003X • • • 480 4.8 3.5 80 60
LSBX48007X • • • 480 4.4 3.2 30 72
LSBX48004X • • • 480 4.8 3.5 80 72
LSBX48001X • • • 480 4.8 3.5 80 72
LSBX50009X • • • 500 4.8 3.5 60 60
LSBX50010X • • • 500 4.8 3.5 75 60
LSBX50011X • • • 500 4.8 3.5 60 72
LSBX52008X • • • 520 4.4 3.2 30 72
LSBX52007X • • • 520 4.8 3.5 30 72
LSBX52003X • • • 520 4.8 3.5 60 72
LSBX52006X • • • 520 4.8 3.5 70 72
LSBX53004X • • • 530 4.8 3.5 72 75
LSBX53001X • • • 530 5.2 3.5 30 60
LSBX53003X • • • 530 5.2 3.5 100 60
LSBX55007X • • • 550 5.0 3.5 40 72
LSBX55002X • • • 550 5.2 3.5 60 60
LSBX55006X • • • 550 5.2 3.5 80 60
LSBX55008X • • • 550 5.2 3.5 90 60
LSBX56504X • • • 565 5.0 3.5 100 72
LSBX56502X • • • 565 5.2 3.5 100 60
LSBX57001X • • • 570 4.8 3.5 60 60
LSBX60001X • • • 600 5.8 4.0 60 60
LSBX60002X • • • 600 5.8 4.0 60 72
LSBX67003X •  •  •  670 6.2 4.2 40 60
LSBX68001X •  •  •  680 6.2 4.2 40 60
LSBX72001X •  •  •  720 6.4 4.4 40 60
