FREUD LU3B SAW BLADE

FREUD LU3B SAW BLADE

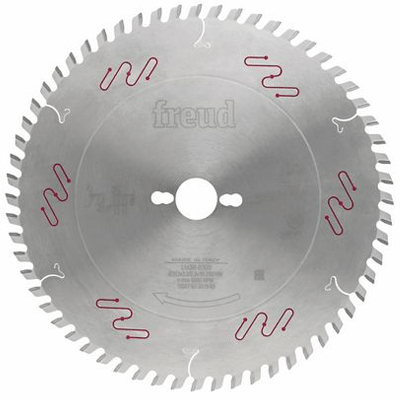

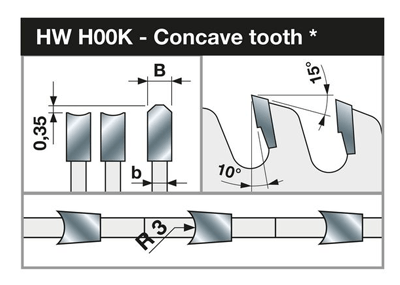

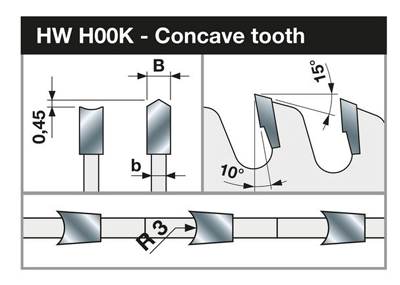

FREUD LU3B Saw Blade – Flat – triple chip tooth with concave face and positive cutting angle.

FREUD LU3B MACHINE Machines :

Squaring saws and vertical panel sizing machines.

FREUD LU3B APPLICATION Materials :

Plywood, laminated chipboard, and laminated MDF.

Applications :

Panel sizing.



SKU: LU3B Categories: , ,

FREUD LU3B SAW BLADE

Freud LU3B Saw Blade to cut bi-laminated panels. To size chipboard and MDF bi-laminated panels with good finishing and long cutting life. No scoring saw blades needed.

Benefits & Features

Anti- Vibration Technology

Body slots laser cut with Freud’s innovative technology. Also available with thermoplastic polyurethane filling that considerably reduces vibration and minimizes noise.

Silver I.C.E Coating

A high performing and anticorrosive coating to maintain the blade temperature low during the working process. The non-stick feature improves chip ejection and notably reduces resin build-up, significantly reducing friction and extending the lifetime of the blade.

TiCo Carbide Technology

A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud. It provides a sharper edge and a flawless finish with a dramatically longer cutting life

Graphs

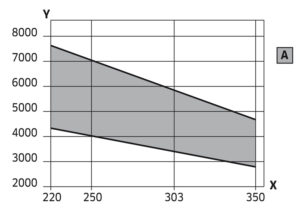

FREUD LU3B GRAPH Minimum and maximum RPM based on the blade diameter.

X : Diameter (mm)

Y : RPM

A : Solid Wood

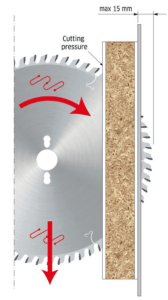

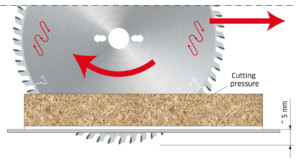

FREUD LU3A SCORER NO NEED FREUD LU3B CUTTING PRESSURE FREUD LU3B CUTTING PRESSURE 2







Model & Specification



Model Anti Vibration Silver I.C.E Coating TiCo Carbide Blade Dia (mm) Plate (mm) Kerf (mm) Bore (mm) Tooth
LU3B 0100 • • • 220 3.2 2.2 30 42
LU3B 0200 • • • 250 3.2 2.2 30 48
LU3B 0300 • • • 303 3.2 2.2 30 60
LU3B 0400 •     • • 350 3.2 2.2 30 72
LU3B 1300* • • • 303 3.2 2.2 30 60
