| Fixed Table Dimension (L x W) | 740mm x 505mm |
|---|---|
| Sliding Table Dimension (L x W) | 740mm x 915mm |
| Sliding Table With Extension Guide | 740mm x 1370mm |
| Table Height | 760mm |
| Length of Hex. Bar | 2030mm x 2pcs |
| Sliding Capacity | 1220mm |
| Maximum Cutting Height | 95mm |
| Sawblade Diameter | 305mm |
| Sawblade Speed | 3000rpm |
| Main Motor | 2Hp 1 Phase or 3Hp, 3 Phase Motor |
| Voltage | 415v / 50Hz |
| Nett Weight | 180 Kg |

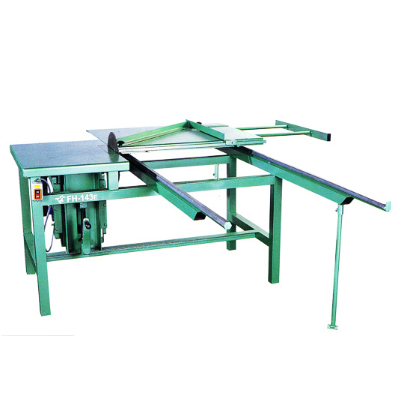

FORMAHERO FH-143E SLIDING TABLE SAW
FEATURES:
- Powerful 2Hp / 3Hp (Optional)
- Complete with extension guide for long panel
- Simple operation, minimum training required
- Precision guides for easy sliding
- Motor can be easily adjusted by handwheel for fast and easy changing and tensioning of belts
