FREUD LU5B SAW BLADES

FREUD LU5B SAW BLADES TO CUT NON-FERROUS METALS AND PVC

FREUD LU5B Saw Blade to cut solid drawn products with a thickness between 2 and 10 mm.

Machines :

Double Head Cutting Machine, CNC Cutting Units.

Materials :

Aluminium, Copper and Brass, Plastic, PVC.

Features :

Flat-triple chip tooth with positive cutting angle.



FREUD LU5B SAW BLADES TO CUT NON-FERROUS METALS AND PVC

FREUD LU5B Saw blade is designed to provide superior performance and durability, making it an excellent choice for both professional and DIY user.

The FREUD LU5B Saw Blade features a unique design that allows it to cut through non-ferrous metals and PVC with ease. The Blade is made from high-quality carbide, which provides excellent resistance to wear and tear, ensuring long-lasting performance.

One of the most significant advantages of the LU5B Saw Blade is its precision. The blade is designed to make clean, accurate cuts, which are essential for achieving high-quality result in any project. The precision of the blade also reduces the need for additional finishing work, saving you time and effort.

The LU5B Saw Blade is compatible with a wide range of saws, making it versatile tool for any workshop. Whether you’re cutting aluminium, copper, brass or PVC, this blade will provide excellent results.

In addditional to its excellent performance, the FREUD LU5B Saw Blades is also easy to use. The blade’s design ensure smooth, easy cut, and it can be quickly installed and removed from you saw. This ease of use makes it an idea choice for both professional and DIY users.

In conclusion, if you’re looking for a reliable and versatile saw blade for cutting non-ferrous metals and PVC, look no futher than the FREUD LU5b Saw Blades. With its precision, durability, and ease of use, this blade is sure to become a valuable tool in your workshop.



Benefits & Features

Anti- Vibration Technology

Body slots laser cut with Freud’s innovative technology. Also available with thermoplastic polyurethane filling that considerably reduces vibration and minimizes noise.

Silver I.C.E Coating

A high performing and anticorrosive coating to maintain the blade temperature low during the working process. The non-stick feature improves chip ejection and notably reduces resin build-up, significantly reducing friction and extending the lifetime of the blade.

TiCo Carbide Technology

A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud. It provides a sharper edge and a flawless finish with a dramatically longer cutting life

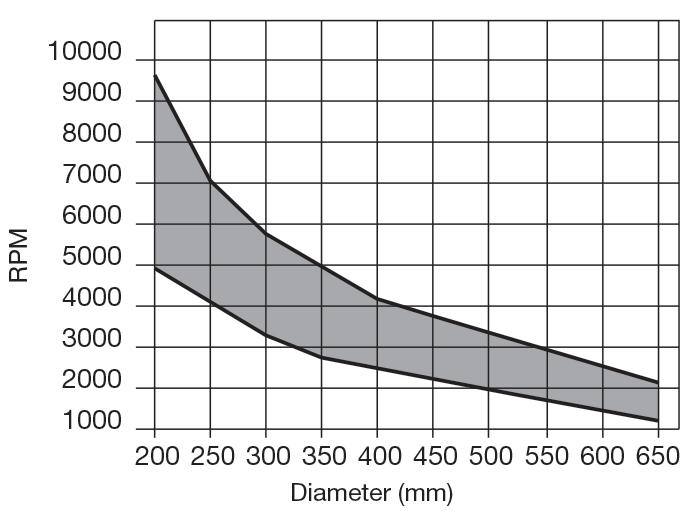

Graphs

Minimum and maximum RPM based on the blade diameter.



Model & Specification

Model Anti Vibration Silver I.C.E Coating TiCo Carbide Blade Dia (mm) Plate (mm) Kerf (mm) Bore (mm) Tooth
LU5B 0100 • • 200 2.8 2.2 30 64
LU5B 0200 • • • 250 3.5 3.0 30 80
LU5B 0300 • • • 250 3.5 3.0 32 80
LU5B 0400 • • • 275 3.5 3.0 40 84
LU5B 0500 • • • 300 3.5 3.0 30 88
LU5B 0600 • • • 300 3.5 3.0 32 88
LU5B 0700 • • • 300 3.5 3.0 40 88
LU5B 0800 • • • 300 3.5 3.0 30 96
LU5B 0900 • • • 300 3.5 3.0 32 96
LU5B 1000 • • • 300 3.5 3.0 40 96
LU5B 1100 • • • 330 3.5 3.0 30 104
LU5B 1200 • • • 330 3.5 3.0 32 104
LU5B 1300 • • • 350 3.5 3.0 30 96
LU5B 1400 • • • 350 3.5 3.0 32 96
LU5B 1500 • • • 350 3.5 3.0 40 96
LU5B 1600 • • • 350 3.5 3.0 30 108
LU5B 1700 •  • • 350 3.5 3.0 32 108
LU5B 1800 • • • 350 3.5 3.0 40 108
LU5B 1900 • • • 370 3.5 3.0 30 112
LU5B 2000 • • • 370 3.5 3.0 50 112
LU5B 2100 • • • 380 3.5 3.0 32 112
LU5B 2200 • • • 400 3.5 3.0 30 120
LU5B 2300 • • • 400 3.5 3.0 32 120
LU5B 2400 • • • 400 3.5 3.0 40 120
LU5B 2500 • • • 400 3.5 3.0 50 120
LU5B 2275 • • • 400 3.5 3.0 75 120
LU5B 2600 • • • 420 3.5 3.0 30 120
LU5B 2700 • • • 450 4.0 3.0 30 128
LU5B 2800 • • • 450 4.0 3.0 32 128
LU5B 3100 • • • 500 4.0 3.2 30 140
LU5B 3200 • • • 500 4.0 3.2 32 140
LU5B 3500 • • • 550 4.2 3.5 30 148
LU5B 3800 • • • 550 4.2 3.5 32 148
LU5B 3600 • • • 600 4.8 3.8 30 156
